Suria Parking Solution - Circular Lifting Parking System (10 Floors)
Circular Lifting Parking System (10 Floors)

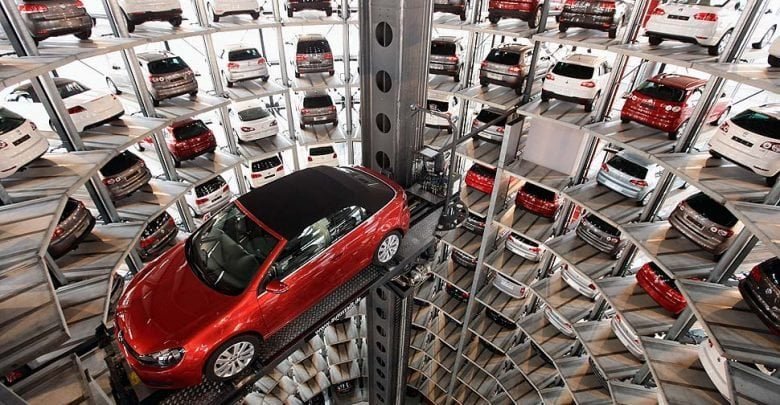

1. Working Principle
The Circular Lifting Parking System is designed in the shape of a cylinder or multi-prism structure, divided into two parts:
Inner Cylinder – Functions as the lifting channel and consists of a lifter, turntable, layer leveling system, and carrier.
Outer Cylinder – Serves as the parking area arranged in a radial layout, allowing 6 to 12 car spaces per floor.
This innovative design maximizes parking capacity in limited spaces, making it ideal for high-density urban areas.
The perfect solutions to park the maximum number of cars in the least amount of space.
This parking equipment is design to provide parking capacity base on pallet’s movement circulation. Designed for small quantity of parking spaces. Therefore it provides short time of vehicles entry.
Computer Control System - Easy to Manage
PCX8D Parking System Using Light Steel Structure
Stable, Strong, Reliable And Long Lasting
Space Saving, Large Capacity, Low Construction Cost
Low Energy Consumption with Eco-friendly Mechanized
Profitable Due To Rentable Parking Lots With Less Space
2. Key Characteristics
Scope of Application
Suitable for outdoor multi-level parking systems and indoor concrete well-type parking systems.
Drive Mode
Operates using a hydraulic pulley system with a large drive ratio.
The hydraulic system uses a pump group pumping station, where each pump can act as a backup for the others.
Features low noise, high efficiency, and enhanced safety performance.
Car Exchange Methods
Options include a comb-type carrier or a tire-gripping carrier for vehicle handling.
Flexible Layouts
Available in ground layouts, semi-underground layouts, and fully underground layouts to fit different site conditions.
User-Friendly Features
Equipped with entrance observation mirrors, voice prompts, and LED displays for a smooth and safe user experience.

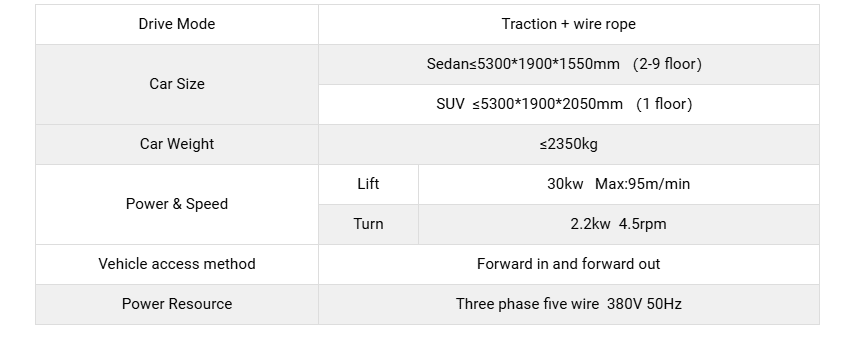

Product Specification
