Suria Parking Solution - Cabinet Lifting Parking System (10 Floors)
Cabinet Lifting Parking System (10 Floors)

1. Working Principle

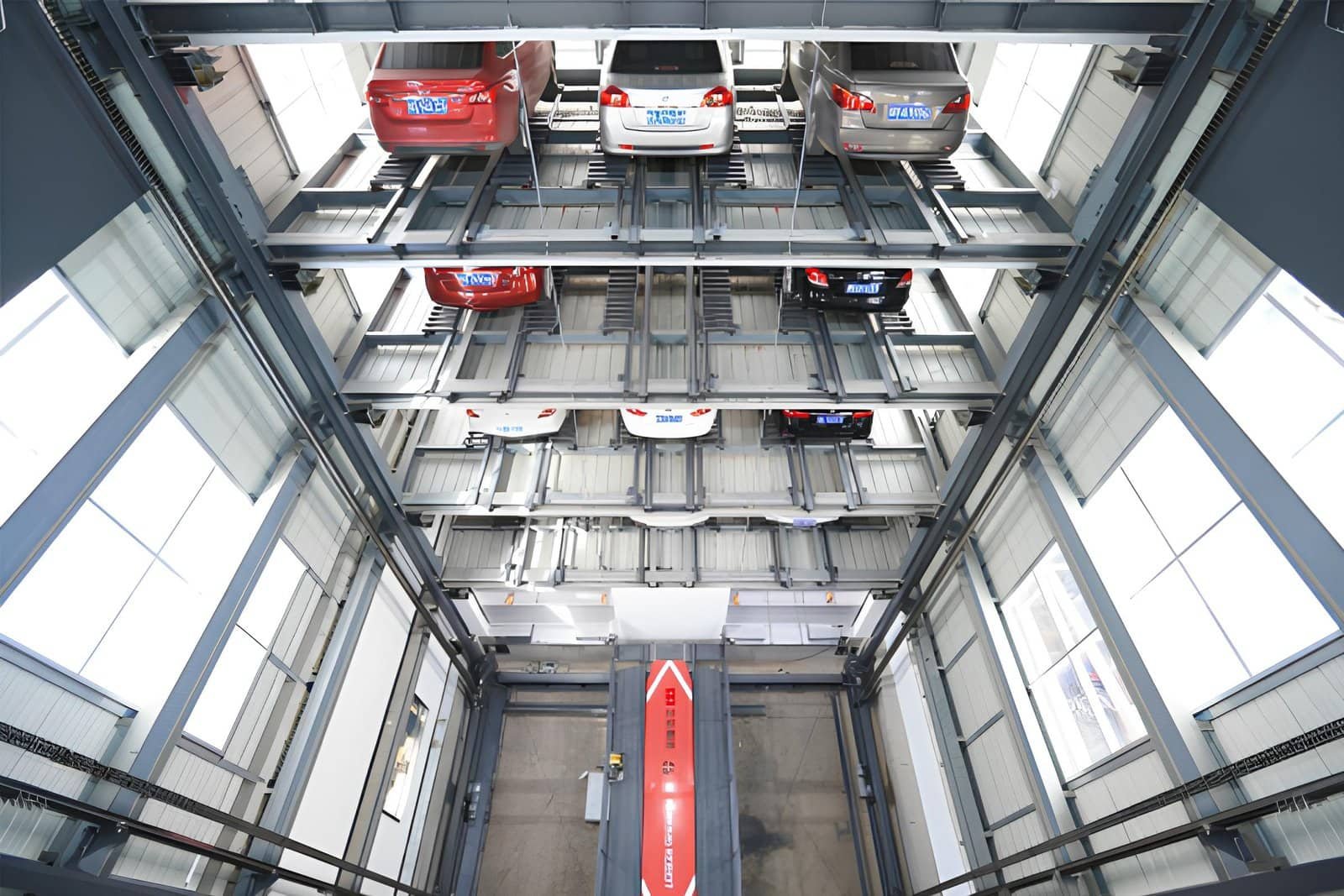

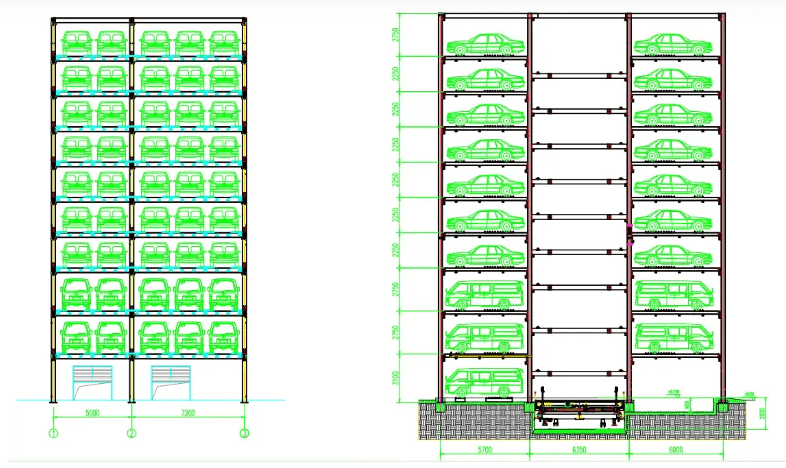

The Cabinet Lifting Parking System has a rectangular structure, divided into two main sections:

  • Tunnel (Lifting Channel): Equipped with a lifter, turntable, layer leveling system, and carrier.

  • Parking Area: Arranged parallel on both sides of the tunnel, offering 4 to 12 parking spaces per floor.

One or more entrances can be located on the ground floor, or directly on the lifting platform. During parking or retrieval, the carrier transports vehicles between the entrance, tunnel, and parking spaces. The lifter simultaneously performs lifting, sliding, and turning operations for efficient car movement.

The perfect solutions to park the maximum number of cars in the least amount of space.

This parking equipment is design to provide parking capacity base on pallet’s movement circulation. Designed for small quantity of parking spaces. Therefore it provides short time of vehicles entry.

Computer Control System - Easy to Manage

PCX8D Parking System Using Light Steel Structure

Stable, Strong, Reliable And Long Lasting

Space Saving, Large Capacity, Low Construction Cost

Low Energy Consumption with Eco-friendly Mechanized

Profitable Due To Rentable Parking Lots With Less Space

2. Key Characteristics

    1. Scope of Application

      • Designed for outdoor multi-level parking systems and indoor concrete well-type parking systems.

    2. Drive Mode

      • Operates with a hydraulic pulley system with a large drive ratio.

      • The hydraulic system features a pump group pumping station, where each pump serves as a backup.

      • Provides low noise, high efficiency, and reliable safety performance.

    3. Car Exchanging Options

      • Available with either a comb-type carrier or a tire-gripping carrier.

    4. Layout Flexibility

      • Suitable for ground-level layouts, semi-underground layouts, and fully underground layouts.

    5. User-Friendly Features

      • Includes entrance observation mirrors, voice prompts, and LED display systems for improved safety and convenience.

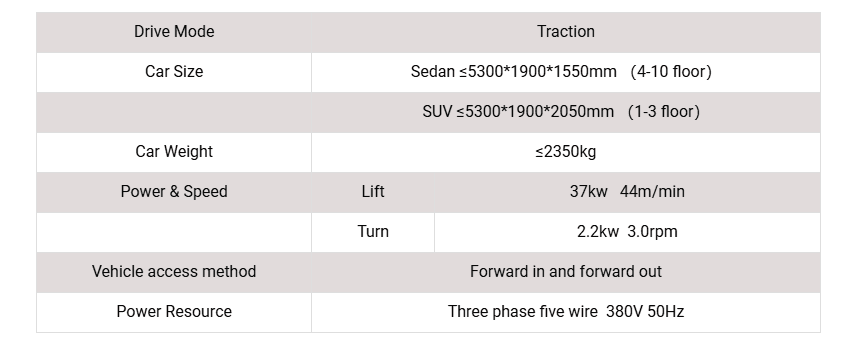

Product Specification

pinch image to zoom
